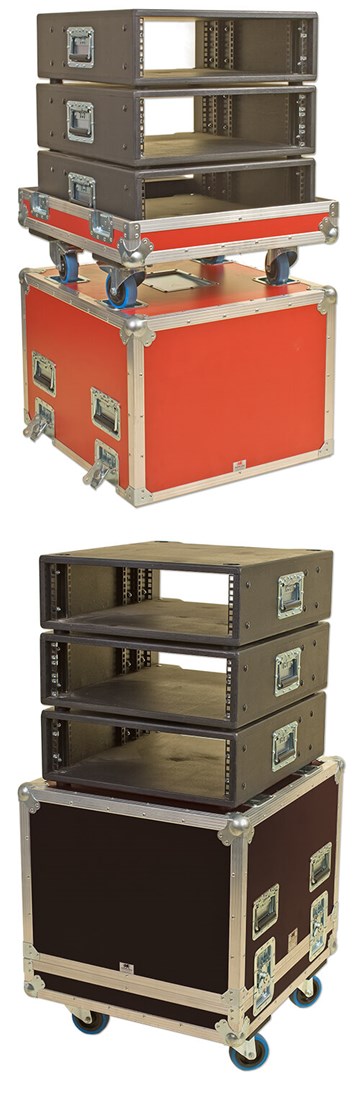

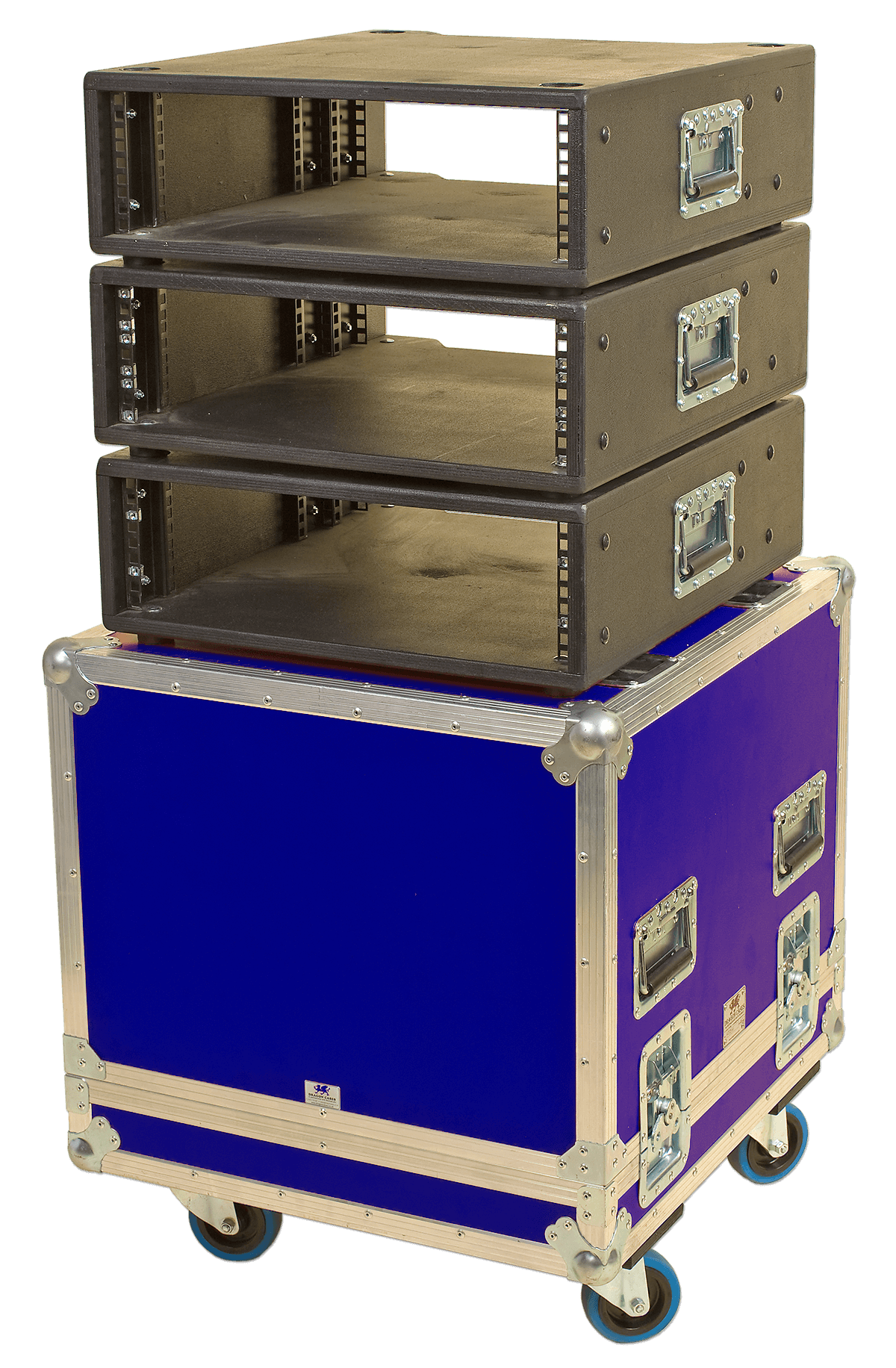

19" Rack Pack Flight Case System

19" Rack Pack Flight Case System

Our rack pack flight case systems are manufactured to order from standard designs – rack pack cases also come in a choice of colours, and in different finishes.

Manufactured in the UK at our partner, Nomad's 16000 square foot factory in the East Midlands.

Cases:

  • Laminate or Phenol faced Birch Plywood with aluminium extrusions and zinc plated steel hardware.
  • Interior surfaces lined and padded with high density Plastazote foam.
  • 100mm swivel castors, 2 with brakes.
  • Recessed castor dishes for safe stacking.
  • 5x7 tour label dish.
  • Recessed butterfly catches and sprung flip handles.
  • Fits 4 across a standard Artic wagon width.

Sleeves and Trays:

  • Birch Plywood rack sleeves and trays coated black with front, rear and intermediate rack strips in sleeves (front and rear only on 3u).
  • Intermediate rack strips positioned to accommodate R0855K rack shelf supports.
  • 550 mm standard rack depth.
  • Rubber feet on base with matching wells on top of sleeves to enable easy stacking.
  • Recessed flip handles housed in to sides.
Request a Quote

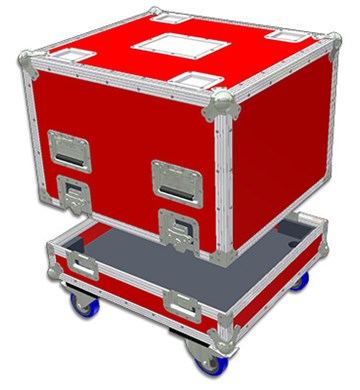

Rack Pack Cases

Click on product Ref number to view CAD drawing

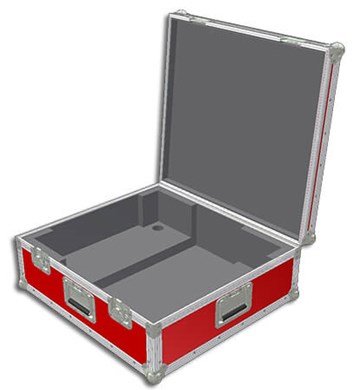

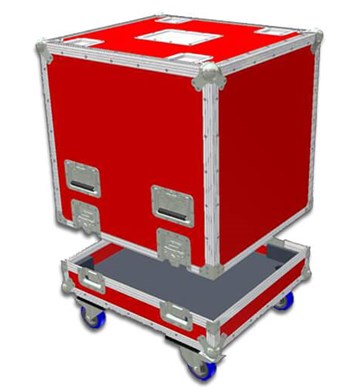

Hand System Flightcase

Takes:
1 x 3u sleeve or 1 x 3u tray

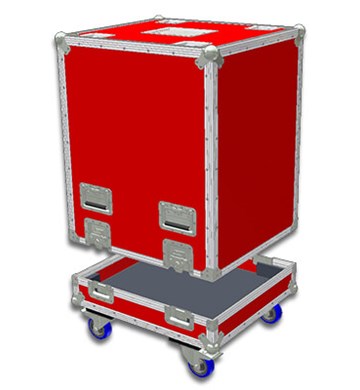

Small System Flightcase

Takes:
2 x 3u sleeves/trays
1 x 6u sleeve.

Medium System Flightcase

Takes:
1 x 10u sleeve/tray
1 x 6u sleeve/tray + 1 x 3u sleeve/tray
3 x 3u sleeves/trays
2 x 4u sleeves

Large System Flightcase

Takes:
1 x 14u sleeve
1 x 10u sleeve/tray + 1 x 3u sleeve/tray
2 x 6u sleeves
4 x 3u sleeves
2 x 4u sleeves + 1 x 3u sleeve/tray

Extra Large System Flightcase

Takes:
1 x 17u sleeve
1 x 10u sleeve/tray + 2 x 3u sleeves/trays
1 x 10u sleeve/tray + 1 x 6u sleeve
2 x 6u sleeves + 1 x 3u sleeve/tray
5 x 3u sleeves/trays
2 x 4u sleeves + 2 x 3u sleeve/tray

Sleeves and Trays

Click on product Ref number to view CAD drawing

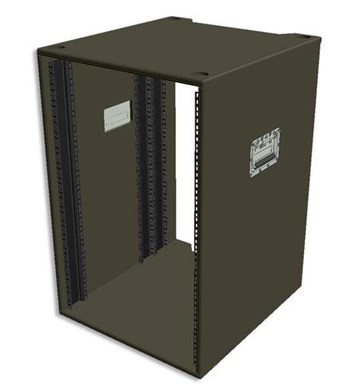

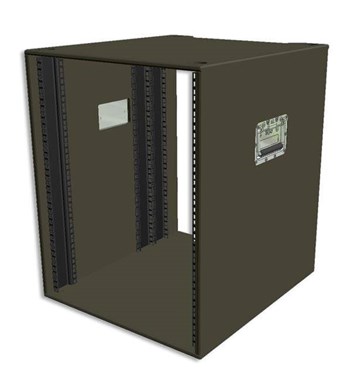

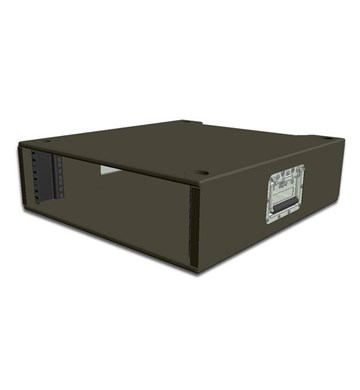

3u Sleeve

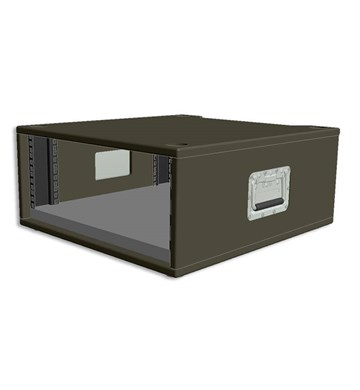

4u Sleeve

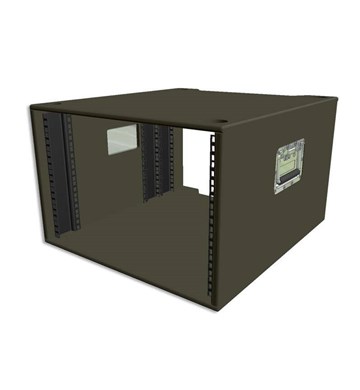

6u Sleeve

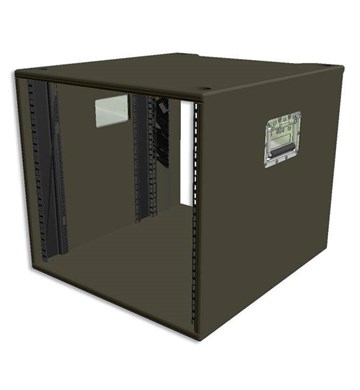

10u Sleeve

14u Sleeve

17u Sleeve

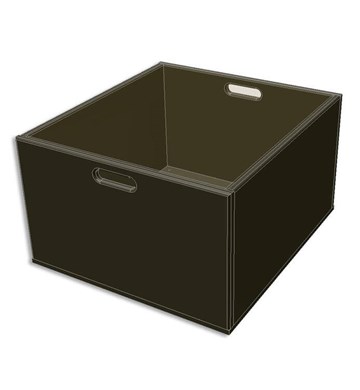

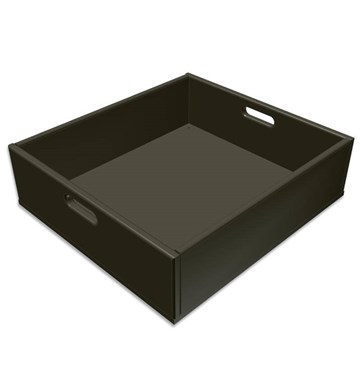

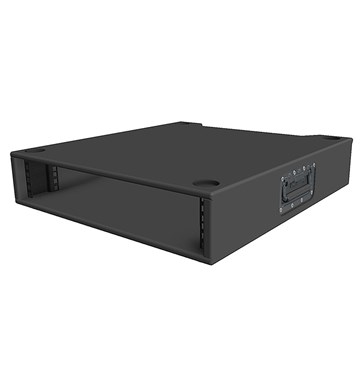

3u Tray

6u Tray

10u Tray

Design

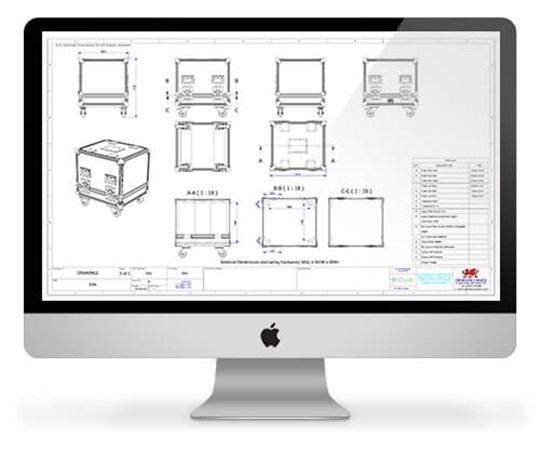

Accurate CAD Designs

Our products are carefully and accurately designed using specially adapted 2D and 3D CAD (Computer Aided Design) programs.

Custom Interiors

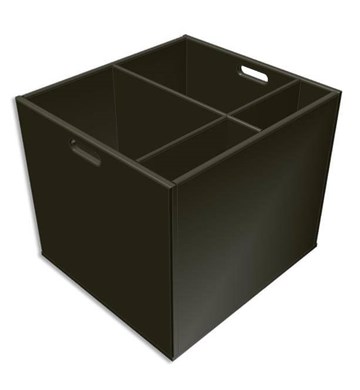

The interiors of our products can be customised to accomodate the contents they are carrying and assist with shock aborbing.

Approval

All designs are sent to you to be fully approved before commencing production.

Request a Quote

Why Choose Dragon Cases?

Custom Design

Our flight cases are designed in-house and all are manufactured to your exact specifications.

Made in the UK

All of our bespoke flight cases are manufactured here in the UK

We are Certified

Dragon Cases has been accreditted BS EN ISO 9001:2008 certification for the supply of custom flight cases.
