Foam Suspended 19" Rack Cases

Foam Suspended 19" Rack Cases

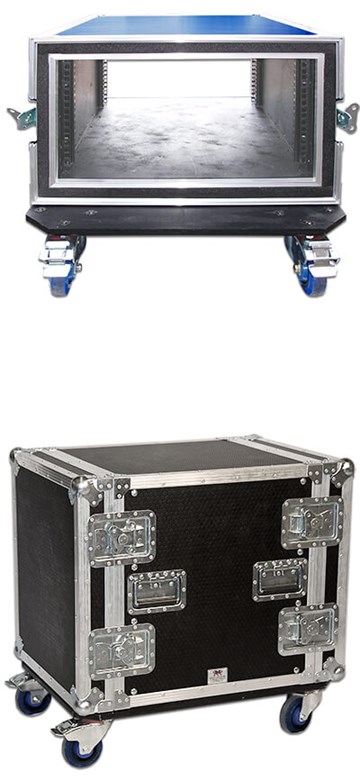

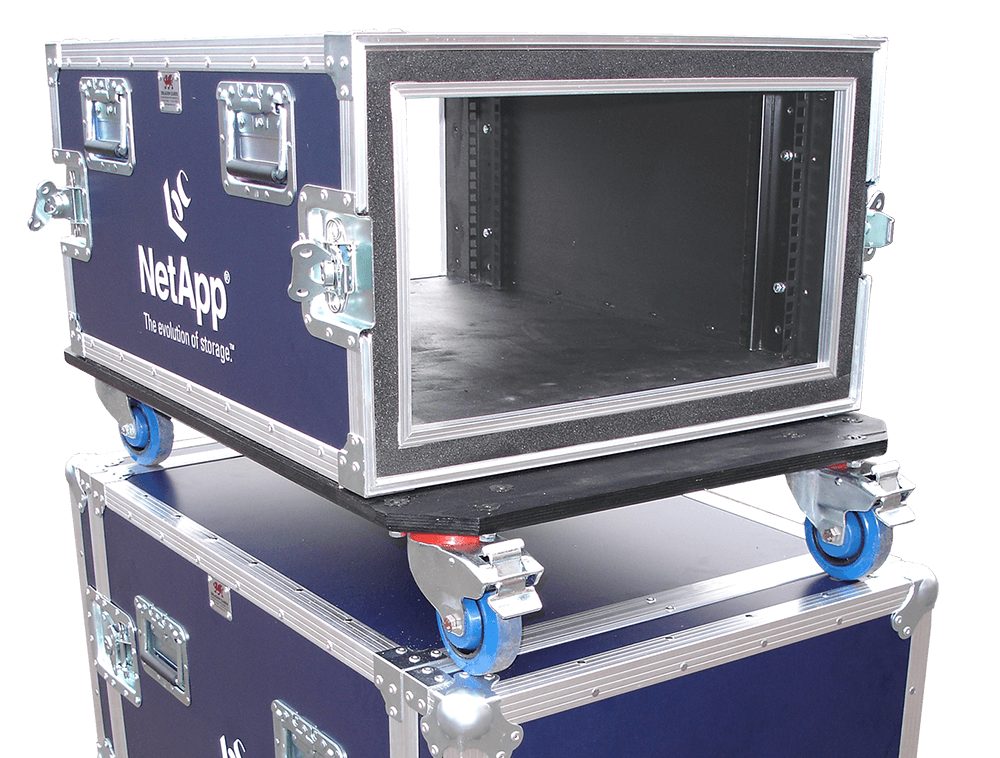

If you’re looking for a level of protection that reassures, a flight case with foam offers it! Our foam suspended 19 inch rack case range offers extra protection to the equipment by means of plywood rack enclosures, capped with aluminium extrusion, and suspended in 25mm high density Plastazote foam.

Double punched rack rails are fixed to the front and the rear of the enclosure - at approximately 20mm off the edge and positioned to take optional R0855K rack shelf supports. Our standard depth of enclosure is 440m. Contact the office for prices on deeper cases. All come as standard with both front and rear removable doors.

Quality Flight Cases with Foam

Cases of unit height 10 and over include swivel castors with 100mm blue resilex wheels (2 braked). These are mounted on 18mm Birch Ply wheelie boards. Castors can be mounted on the rear of the case at an extra cost of £55.00 to cover the cost of extra handles. All cases are supplied with 2 sets of fixings for every unit size. (i.e. 12 screws, 12 cup washers and 12 clipnuts for 6 unit case).

These standard design flight cases are manufactured in compliance with the Air Transport Association ATA-300 regulations and the Electronic Industries Association EIA-310-D standard.

Accessories

Extra fixings are available if required. Prices are based on our standard designs and are exclusive of delivery and VAT.

Click here for rack accessories.

Click here for standard prices.

Request a Quote

Design

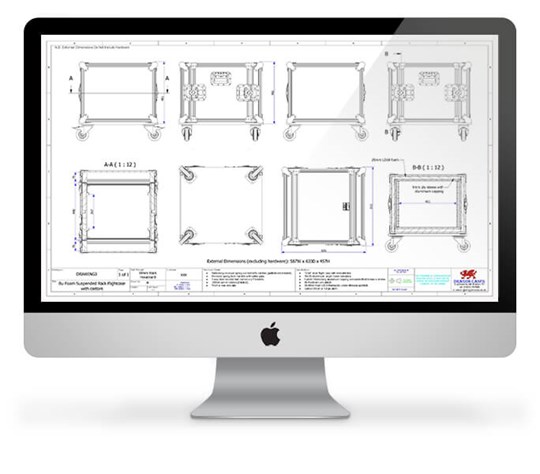

Accurate CAD Designs

Our products are carefully and accurately designed using specially adapted 2D and 3D CAD (Computer Aided Design) programs.

Custom Interiors

The interiors of our products can be customised to accomodate the contents they are carrying and assist with shock aborbing.

Approval

All designs are sent to you to be fully approved before commencing production.

Request a Quote

Why Choose Dragon Cases?

Custom Design

Although we’re always on hand to guide and advise our customers, our transit cases are designed in-house and manufactured to your exact specifications regarding shape, size, and colour. Additional accessories and fittings can also be ordered into stock, if necessary.

Made in the UK

All of our bespoke flight cases are manufactured here in the UK by our team of experts. We use only the best quality materials to ensure your fragile items are kept as secure as possible when you’re on the go.

We are Certified

Dragon Cases has been accredited BS EN ISO 9001:2015 certification for the supply of standard and custom flight cases, including transit protective cases.

Price Listing



Ref Unit Height Black Hexaboard Coloured Laminate
F192UFS 2 £419.00 £462.00
F193UFS 3 £437.00 £482.00
F194UFS 4 £457.00 £502.00
F196UFS 6 £507.00 £557.00
F198UFS 8 £530.00 £584.00
F1910UFS 10 £720.00 £792.00
F1912UFS 12 £765.00 £840.00
F1914UFS 14 £786.00 £864.00
F1916UFS 16 £796.00 £776.00
F1918UFS 18 £812.00 £904.00
F1920UFS 20 £832.00 £915.00
F1922UFS 22 £865.00 £953.00
F1924UFS 24 £887.00 £976.00



May 2022



 Prices are based on our standard designs and are exclusive of delivery and VAT.

Sizes higher than 24u are available on request.
