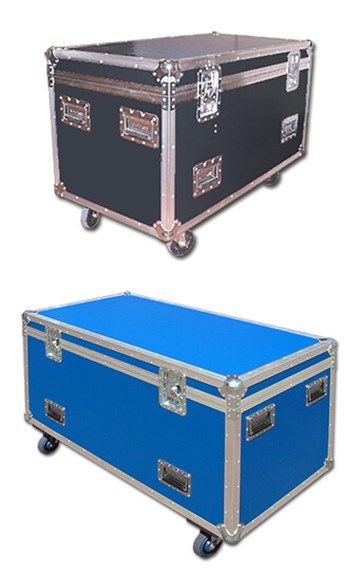

Our road trunks and cable trunks are manufactured to order from laminate or phenol faced 9mm birch plywood with aluminium hybrid lid locating extrusions, corner angle edging extrusions and zinc plated 3 way steel ball corners. The tough specification includes 52mm piano hinge with recessed lid stays, recessed padlocking butterfly catches and recessed flip handles with rubber grips. They are fitted with high quality Tente 100mm swivel castors with resilex wheels, two of which are braked as standard. These are mounted on 18mm birch ply runners.
Stacking castors dishes and recessed tour label holders can also be fitted if required.
Our bespoke cable trunks are second to none for quality. We can also provide quotations fo lift out trays and fixed partitions on request, so if you are looking for a quality cable trunk with bespoke inner, then give us a call and let us help you design the perfect trunk.
These standard design flight cases are manufactured to comply with the Air Transport Association ATA-300 specifications.
Silk screen printing of company logos or images can be arranged on request.
click here for prices.
We can also supply Flexi-Trunks with adjustable partitions. if you require details of these then head over to our Flexi-Trunks page.
Our products are carefully and accurately designed using specially adapted 2D and 3D CAD (Computer Aided Design) programs.
The interiors of our products can be customised to accomodate the contents they are carrying and assist with shock aborbing.
All designs are sent to you to be fully approved before commencing production.
Request a QuoteOur flight cases are designed in-house and all are manufactured to your exact specifications.
All of our bespoke flight cases are manufactured here in the UK
Dragon Cases has been accreditted BS EN ISO 9001:2015 certification for the supply of custom flight cases.

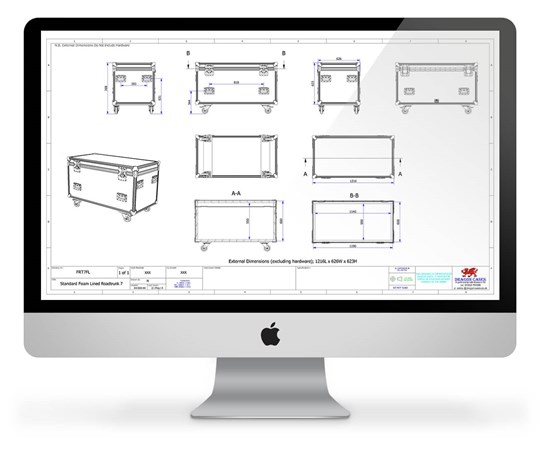

(select "Ref" to view cad drawing)
Ref |
Int Dims |
Unlined |
Unlined |
Extra Cost for |
FRT1 | 800w x 400h x 400d | £384.00 | £421.00 | £65.00 |
FRT2 | 900w x 400h x 520d | £419.00 | £462.00 | £66.00 |
FRT3 | 950w x 450h x 450d | £420.00 | £461.00 | £66.00 |
FRT4 | 1000w x 500h x 500d | £449.00 | £495.00 | £75.00 |
FRT5 | 600w x 600h x 600d | £414.00 | £456.00 | £66.00 |
FRT6 | 1190w x 450h x 600d | £507.00 | £557.00 | £94.00 |
FRT7 | 1190w x 600h x 600d | £529.00 | £583.00 | £94.00 |
FRT8 | 1500w x 600h x 600d | £514.00 | £650.00 | £110.00 |
FRT9 | 1800w x 600h x 600d | £652.00 | £718.00 | £126.00 |
May 2022
Prices are based on standard designs and do not include delivery and VAT.
