Astroboard

Astroboard

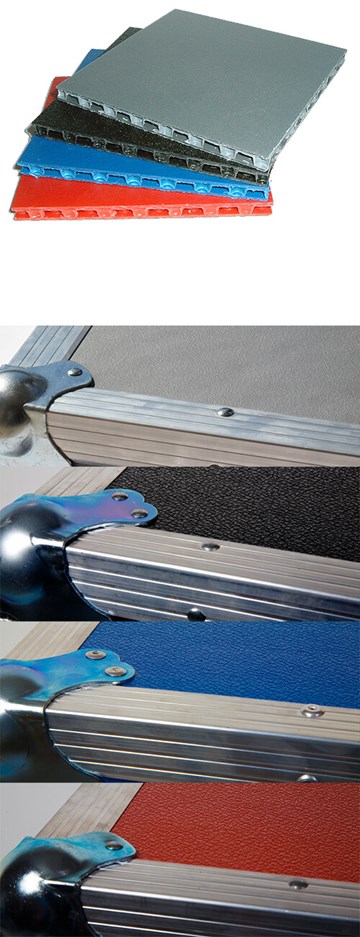

One of the more popular materials used in the manufacture of our Flight Cases is Astroboard. This has a 7 mm polypropylene honeycomb sandwich construction.

Available in Grey, Black, Blue or Red, Astroboard weighs 40% less than the equivalent thickness Laminated Plywood. Visibly, no different to a traditional laminated plywood Flight Case. Strong yet makes a lightweight flight case

Due to it's lightweight characteristics, there is a limit to the size of case we can manufacture.


Special Properties Units Results Test Methods
Weight g/m2 2500 +/- 50 DIN 53 854
Thickness mm 6.2 +/- 0.2 DIN 53 855
Density g/cm2 0.41 +/- 0.02 DIN 53 479
Filter % <10 DIN EN 60
Tensile Stress at Yield MPa(50mm) 2600 +/- 100 DIN 53 455
Tensile Stress at Yield % 35 +/- 10 DIN 53 455
Flexural Strength MPa 10 +/- 2 DIN EN ISO 128
Flexural Modulus MPa 700 +/- 50 DIN EN ISO 178
Penetration Character N >2000 DIN ISO 6603/2
Penetration Character J< >25 DIN ISO 6603/2
Edge Resistance to Compression kN/m >50 DIN 53 149
Surface Resistance to Compression kN/m2 >1500 DIN ISO 3035
Change in dimension 1h/90°C % <0.7 MD/CD
Cold Resistance °C -30 Falling Iron Ball 500g
Flammability, burning rate mm/min <20 FMVSS 302
